Chapter 7: Unsupervised Learning

  1. 2019-2026 Peter C. Bruce, Andrew Bruce, Peter Gedeck
from adjustText import adjust_text
from collections import Counter
from matplotlib import cm
from scipy.cluster.hierarchy import dendrogram, fcluster, linkage
from scipy.spatial.distance import squareform
from scipy.stats import multivariate_normal
from sklearn import preprocessing
from sklearn.cluster import KMeans
from sklearn.decomposition import PCA
from sklearn.mixture import GaussianMixture
import gower
import math
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import prince
import random
import seaborn as sns

random.seed(123)

# Location of the data files. Adjust this path if you keep the data
# files in a different directory.
from pathlib import Path
DATA_DIR = Path('../data')

Unsupervised Learning

Principal Components Analysis

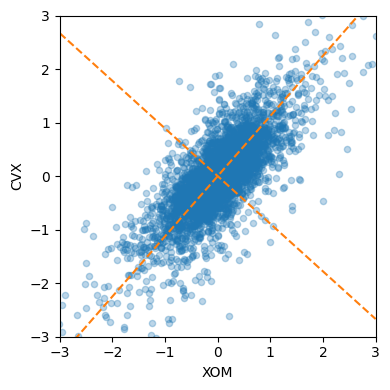

A Simple Example

sp500_px = pd.read_csv(DATA_DIR / "sp500_data.csv.gz", index_col=0)
oil_px = sp500_px[["XOM", "CVX"]]

pcs = PCA(n_components=2)
pcs.fit(oil_px)
loadings = pd.DataFrame(pcs.components_, columns=oil_px.columns)
loadings
XOM CVX
0 0.664711 0.747101
1 0.747101 -0.664711
def abline(slope, intercept, ax):
    """Calculate coordinates of a line based on slope and intercept"""
    x_vals = np.array(ax.get_xlim())
    return (x_vals, intercept + slope * x_vals)

ax = oil_px.plot.scatter(x="XOM", y="CVX", alpha=0.3, figsize=(4, 4))
ax.set_xlim(-3, 3)
ax.set_ylim(-3, 3)
ax.plot(*abline(loadings.loc[0, "CVX"] / loadings.loc[0, "XOM"], 0, ax),
        "--", color="C1")
ax.plot(*abline(loadings.loc[1, "CVX"] / loadings.loc[1, "XOM"], 0, ax),
        "--", color="C1")

plt.tight_layout()
plt.show()

Interpreting Principal Components

syms = sorted(["AAPL", "MSFT", "CSCO", "INTC", "CVX", "XOM", "SLB", "COP",
               "JPM", "WFC", "USB", "AXP", "WMT", "TGT", "HD", "COST"])
top_sp = sp500_px.loc[sp500_px.index >= "2011-01-01", syms]

sp_pca = PCA()
sp_pca.fit(top_sp)

explained_variance = pd.DataFrame(sp_pca.explained_variance_)
ax = explained_variance.head(10).plot.bar(legend=False, figsize=(4, 4))
ax.set_xlabel("Component")

plt.tight_layout()
plt.show()

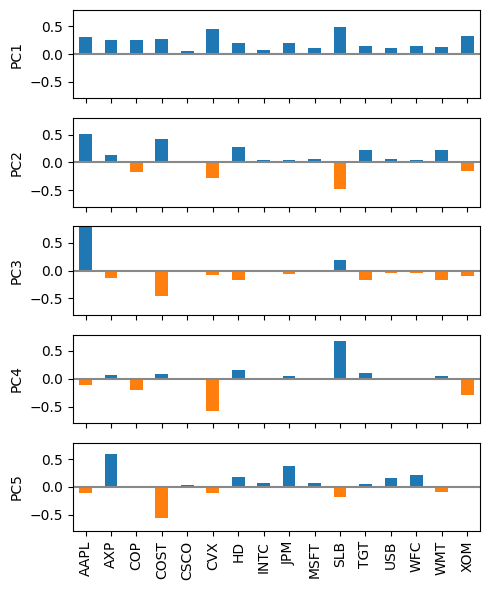

loadings = pd.DataFrame(sp_pca.components_[0:5, :], columns=top_sp.columns)
max_loading = 1.01 * np.max(np.max(np.abs(loadings.loc[0:5, :])))

f, axes = plt.subplots(5, 1, figsize=(5, 6), sharex=True)
for i, ax in enumerate(axes):
    pc_loadings = loadings.loc[i, :]
    colors = ["C0" if loading > 0 else "C1" for loading in pc_loadings]
    ax.axhline(color="#888888")
    pc_loadings.plot.bar(ax=ax, color=colors)
    ax.set_ylabel(f"PC{i + 1}")
    ax.set_ylim(-max_loading, max_loading)

plt.tight_layout()
plt.show()

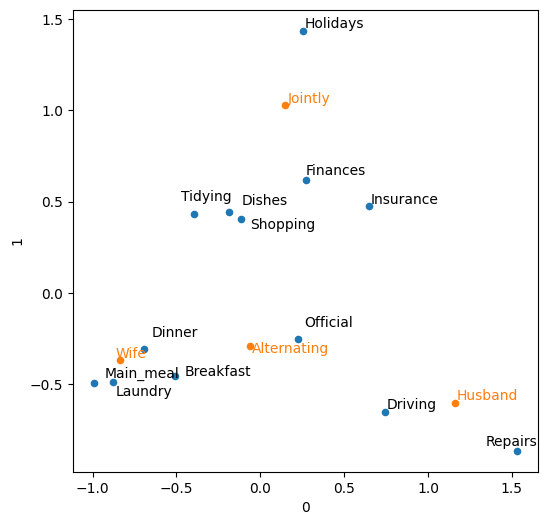

Correspondence Analysis

housetasks = pd.read_csv(DATA_DIR / "housetasks.csv", index_col=0)

ca = prince.CA(n_components=2)
ca = ca.fit(housetasks)

ax = ca.row_coordinates(housetasks).plot.scatter(x=0, y=1, figsize=(6, 6))
ca.column_coordinates(housetasks).plot.scatter(x=0, y=1, ax=ax, c="C1")
texts = []
for idx, row in ca.row_coordinates(housetasks).iterrows():
    texts.append(plt.text(row[0], row[1], idx))
for idx, row in ca.column_coordinates(housetasks).iterrows():
    texts.append(plt.text(row[0], row[1], idx, color="C1"))
adjust_text(texts, only_move={"points": "y", "texts": "y"})
plt.show()

K-Means Clustering

A Simple Example

df = sp500_px.loc[sp500_px.index >= "2011-01-01", ["XOM", "CVX"]]
kmeans = KMeans(n_clusters=4).fit(df)
df["cluster"] = kmeans.labels_
df.head()
XOM CVX cluster
Date
2011-01-03 0.736805 0.240681 1
2011-01-04 0.168668 -0.584516 3
2011-01-05 0.026631 0.446985 1
2011-01-06 0.248558 -0.919751 3
2011-01-07 0.337329 0.180511 1
centers = pd.DataFrame(kmeans.cluster_centers_, columns=["XOM", "CVX"])
centers
XOM CVX
0 -1.129224 -1.729708
1 0.296863 0.392141
2 1.009182 1.489102
3 -0.308915 -0.521594

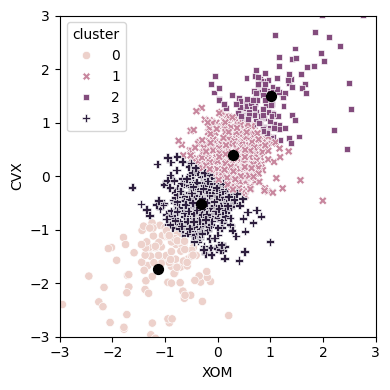

fig, ax = plt.subplots(figsize=(4, 4))
ax = sns.scatterplot(x="XOM", y="CVX", hue="cluster", style="cluster",
                     ax=ax, data=df)
ax.set_xlim(-3, 3)
ax.set_ylim(-3, 3)
centers.plot.scatter(x="XOM", y="CVX", ax=ax, s=50, color="black")

plt.tight_layout()
plt.show()

K-Means Algorithm

syms = sorted(["AAPL", "MSFT", "CSCO", "INTC", "CVX", "XOM", "SLB", "COP",
               "JPM", "WFC", "USB", "AXP", "WMT", "TGT", "HD", "COST"])
top_sp = sp500_px.loc[sp500_px.index >= "2011-01-01", syms]
kmeans = KMeans(n_clusters=5).fit(top_sp)

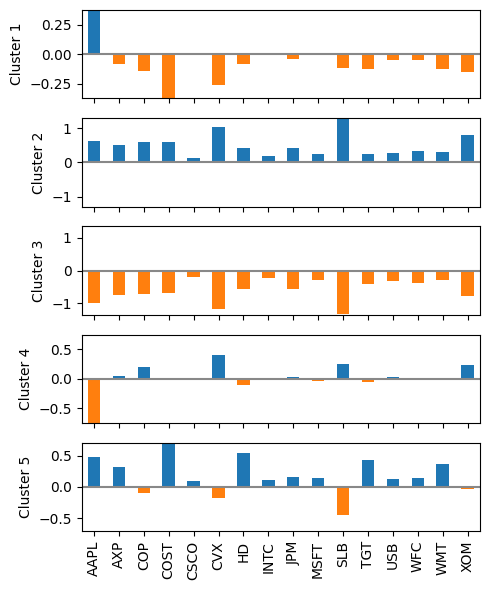

Interpreting the Clusters

Counter(kmeans.labels_)
Counter({np.int32(0): 280,
         np.int32(3): 251,
         np.int32(1): 220,
         np.int32(2): 194,
         np.int32(4): 186})
centers = pd.DataFrame(kmeans.cluster_centers_, columns=syms)

f, axes = plt.subplots(5, 1, figsize=(5, 6), sharex=True)
for i, ax in enumerate(axes):
    center = centers.loc[i, :]
    max_center = 1.01 * np.max(np.max(np.abs(center)))
    colors = ["C0" if cc > 0 else "C1" for cc in center]
    ax.axhline(color="#888888")
    center.plot.bar(ax=ax, color=colors)
    ax.set_ylabel(f"Cluster {i + 1}")
    ax.set_ylim(-max_center, max_center)

plt.tight_layout()
plt.show()

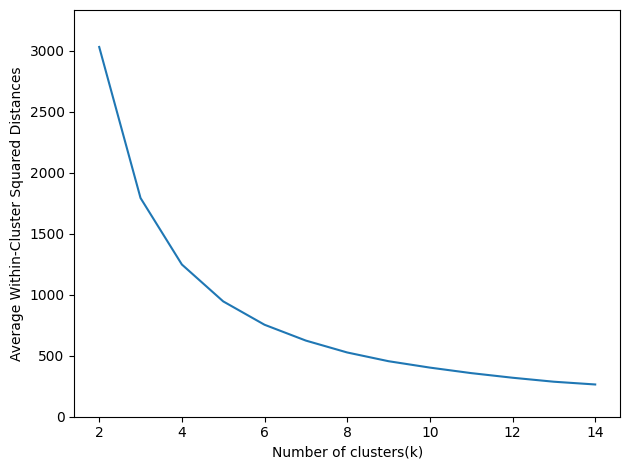

Selecting the Number of Clusters

inertia = []
for n_clusters in range(2, 15):
    kmeans = KMeans(n_clusters=n_clusters, random_state=0).fit(top_sp)
    inertia.append(kmeans.inertia_ / n_clusters)

inertias = pd.DataFrame({"n_clusters": range(2, 15), "inertia": inertia})
ax = inertias.plot(x="n_clusters", y="inertia")
plt.xlabel("Number of clusters(k)")
plt.ylabel("Average Within-Cluster Squared Distances")
plt.ylim((0, 1.1 * inertias.inertia.max()))
ax.legend().set_visible(False)

plt.tight_layout()
plt.show()

Hierarchical Clustering

A Simple Example

syms1 = ["AAPL", "AMZN", "AXP", "COP", "COST", "CSCO", "CVX", "GOOGL", "HD",
         "INTC", "JPM", "MSFT", "SLB", "TGT", "USB", "WFC", "WMT", "XOM"]
df = sp500_px.loc[sp500_px.index >= "2011-01-01", syms1].transpose()

Z = linkage(df, method="complete")

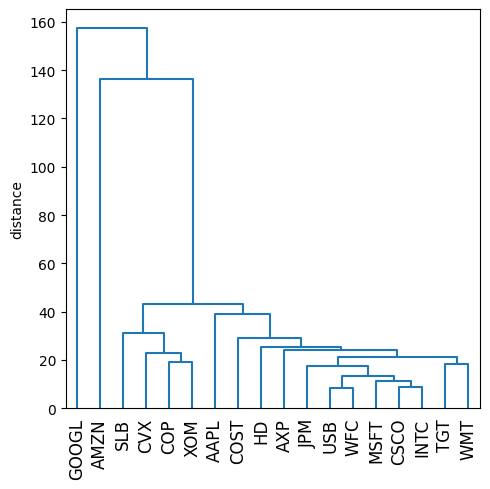

The Dendrogram

fig, ax = plt.subplots(figsize=(5, 5))
dendrogram(Z, labels=list(df.index), ax=ax, color_threshold=0)
plt.xticks(rotation=90)
ax.set_ylabel("distance")

plt.tight_layout()
plt.show()

memb = fcluster(Z, 4, criterion="maxclust")
memb = pd.Series(memb, index=df.index)
for key, item in memb.groupby(memb):
    print(f"{key} : {', '.join(item.index)}")
1 : COP, CVX, SLB, XOM
2 : AAPL, AXP, COST, CSCO, HD, INTC, JPM, MSFT, TGT, USB, WFC, WMT
3 : AMZN
4 : GOOGL

Model-Based Clustering

Mixtures of Normals

df = sp500_px.loc[sp500_px.index >= "2011-01-01", ["XOM", "CVX"]]
mclust = GaussianMixture(n_components=2).fit(df)
mclust.bic(df)
4589.820626249873

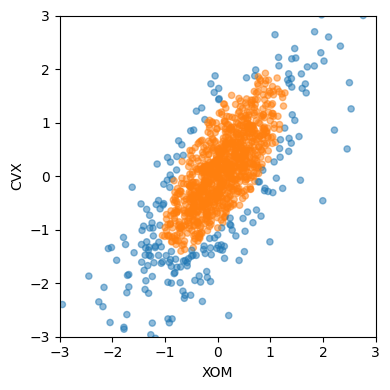

fig, ax = plt.subplots(figsize=(4, 4))
colors = [f"C{c}" for c in mclust.predict(df)]
df.plot.scatter(x="XOM", y="CVX", c=colors, alpha=0.5, ax=ax)
ax.set_xlim(-3, 3)
ax.set_ylim(-3, 3)

plt.tight_layout()
plt.show()

print("Mean")
print(mclust.means_)
print("Covariances")
print(mclust.covariances_)
Mean
[[-0.05050178 -0.21237957]
 [ 0.07225117  0.10452744]]
Covariances
[[[0.97385279 0.98028909]
  [0.98028909 1.67646834]]

 [[0.26868436 0.27606914]
  [0.27606914 0.51762673]]]

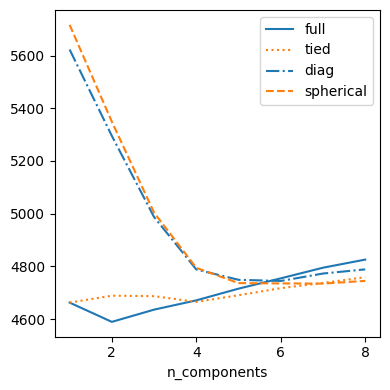

Selecting the Number of Clusters

results = []
covariance_types = ["full", "tied", "diag", "spherical"]
for n_components in range(1, 9):
    for covariance_type in covariance_types:
        mclust = GaussianMixture(n_components=n_components, warm_start=True,
                                 covariance_type=covariance_type)
        mclust.fit(df)
        results.append({
            "bic": mclust.bic(df),
            "n_components": n_components,
            "covariance_type": covariance_type,
        })

results = pd.DataFrame(results)

colors = ["C0", "C1", "C2", "C3"]
styles = ["C0-", "C1:", "C0-.", "C1--"]

fig, ax = plt.subplots(figsize=(4, 4))
for i, covariance_type in enumerate(covariance_types):
    subset = results.loc[results.covariance_type == covariance_type, :]
    subset.plot(x="n_components", y="bic", ax=ax, label=covariance_type,
                kind="line", style=styles[i])

plt.tight_layout()
plt.show()

Scaling and Categorical Variables

Scaling the Variables

loan_data = pd.read_csv(DATA_DIR / "loan_data.csv.gz")

defaults = loan_data.loc[loan_data["outcome"] == "default",]
columns = ["loan_amnt", "annual_inc", "revol_bal", "open_acc",
           "dti", "revol_util"]

df = defaults[columns]
kmeans = KMeans(n_clusters=4, random_state=1).fit(df)
counts = Counter(kmeans.labels_)

centers = pd.DataFrame(kmeans.cluster_centers_, columns=columns)
centers["size"] = [counts[i] for i in range(4)]
centers
loan_amnt annual_inc revol_bal open_acc dti revol_util size
0 17809.760881 78669.452556 18933.405997 11.594003 17.016428 62.183810 7906
1 21444.318867 148736.057263 33152.689572 12.376733 13.831145 63.151084 1654
2 24290.909091 409746.465909 84710.988636 13.431818 8.148636 60.015647 88
3 10274.160906 41241.205530 9950.095008 9.480338 17.718588 57.903425 13023
scaler = preprocessing.StandardScaler()
df0 = scaler.fit_transform(df * 1.0)

kmeans = KMeans(n_clusters=4, random_state=1).fit(df0)
counts = Counter(kmeans.labels_)

centers = pd.DataFrame(scaler.inverse_transform(kmeans.cluster_centers_),
                       columns=columns)
centers["size"] = [counts[i] for i in range(4)]
centers
loan_amnt annual_inc revol_bal open_acc dti revol_util size
0 13484.728906 55907.993263 16435.803337 14.322265 24.211535 59.463608 6244
1 25950.205142 116834.142232 32945.972921 12.396335 16.165914 66.123542 3670
2 10507.283093 51117.994063 11635.285252 7.509513 15.931561 77.795077 7397
3 10324.846369 53456.824767 6054.819926 8.664618 11.312983 30.999874 5360

Dominant Variables

syms = ["GOOGL", "AMZN", "AAPL", "MSFT", "CSCO", "INTC", "CVX", "XOM",
        "SLB", "COP", "JPM", "WFC", "USB", "AXP", "WMT", "TGT", "HD", "COST"]
top_sp1 = sp500_px.loc[sp500_px.index >= "2005-01-01", syms]

sp_pca1 = PCA()
sp_pca1.fit(top_sp1)

explained_variance = pd.DataFrame(sp_pca1.explained_variance_)
ax = explained_variance.head(10).plot.bar(legend=False, figsize=(4, 4))
ax.set_xlabel("Component")

plt.tight_layout()
plt.show()

loadings = pd.DataFrame(sp_pca1.components_[0:2, :], columns=top_sp1.columns)
loadings.transpose()
0 1
GOOGL 0.857310 -0.477873
AMZN 0.444728 0.874149
AAPL 0.071627 0.020802
MSFT 0.036002 0.006204
CSCO 0.029205 0.003045
INTC 0.026666 0.006069
CVX 0.089548 0.037420
XOM 0.080336 0.020511
SLB 0.110218 0.030356
COP 0.057739 0.024117
JPM 0.071228 0.009244
WFC 0.053228 0.008597
USB 0.041670 0.005952
AXP 0.078907 0.024027
WMT 0.040346 0.007141
TGT 0.063659 0.024662
HD 0.051412 0.032922
COST 0.071403 0.033826

Categorical Data and Gower’s Distance

X = defaults[["dti", "payment_inc_ratio", "home_", "purpose_"]].head(5)
gower.gower_matrix(X, cat_features=[False, False, True, True])
array([[0.        , 0.62204784, 0.68638766, 0.63290393, 0.37727892],
       [0.62204784, 0.        , 0.8143398 , 0.7608561 , 0.5389727 ],
       [0.68638766, 0.8143398 , 0.        , 0.43070832, 0.30910876],
       [0.63290393, 0.7608561 , 0.43070832, 0.        , 0.505625  ],
       [0.37727892, 0.5389727 , 0.30910876, 0.505625  , 0.        ]],
      dtype=float32)

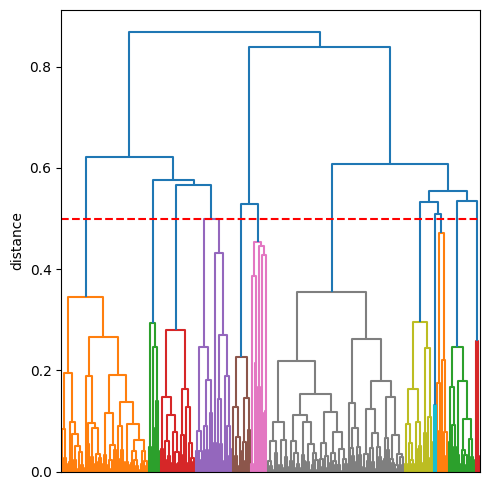

X = defaults[["dti", "payment_inc_ratio", "home_", "purpose_"]].sample(250,
  random_state=1)
D = gower.gower_matrix(X, cat_features=[False, False, True, True])
condensed_D = squareform(D)
Z = linkage(condensed_D, method="complete")

fig, ax = plt.subplots(figsize=(5, 5))
dendrogram(Z, labels=list(X.index), ax=ax, color_threshold=0.5)
ax.axhline(y=0.5, color="red", linestyle="--")
ax.set_xticks([])
ax.set_ylabel("distance")

plt.tight_layout()
plt.show()

memb = fcluster(Z, t=0.5, criterion="distance")
X[memb == 1].head(20)
dti payment_inc_ratio home_ purpose_
15604 29.44 14.67510 MORTGAGE debt_consolidation
20641 24.80 13.14330 MORTGAGE debt_consolidation
21238 20.67 9.92934 MORTGAGE debt_consolidation
20178 22.97 12.81220 MORTGAGE debt_consolidation
6614 16.85 10.03790 MORTGAGE debt_consolidation
15223 18.15 20.56450 MORTGAGE debt_consolidation
12593 17.09 13.00490 MORTGAGE debt_consolidation
14883 18.69 9.88416 MORTGAGE debt_consolidation
4828 12.57 3.62216 MORTGAGE debt_consolidation
22541 27.24 6.81531 MORTGAGE debt_consolidation
19481 8.04 3.90824 MORTGAGE debt_consolidation
5198 15.50 8.77321 MORTGAGE debt_consolidation
21776 17.74 6.94416 MORTGAGE debt_consolidation
16556 11.20 5.98890 MORTGAGE debt_consolidation
8167 27.08 9.17446 MORTGAGE debt_consolidation
14688 17.72 10.61280 MORTGAGE debt_consolidation
7947 10.75 12.80830 MORTGAGE debt_consolidation
16732 25.47 7.18680 MORTGAGE debt_consolidation
11288 16.90 8.22888 MORTGAGE debt_consolidation
2098 23.28 5.01420 MORTGAGE debt_consolidation

Problems with Clustering Mixed Data

columns = ["dti", "payment_inc_ratio", "home_", "pub_rec_zero"]
df = pd.get_dummies(defaults[columns])

scaler = preprocessing.StandardScaler()
df0 = scaler.fit_transform(df * 1.0)
kmeans = KMeans(n_clusters=4, random_state=1).fit(df0)
centers = pd.DataFrame(scaler.inverse_transform(kmeans.cluster_centers_),
                       columns=df.columns)
centers
dti payment_inc_ratio pub_rec_zero home__MORTGAGE home__OWN home__RENT
0 21.431365 12.354001 0.943315 -1.942890e-15 4.718448e-16 1.000000e+00
1 12.743276 5.918701 0.900372 -1.276756e-15 1.526557e-16 1.000000e+00
2 17.339786 8.353535 0.905716 1.000000e+00 -5.134781e-16 -4.163336e-15
3 17.197993 9.266666 0.917903 1.054712e-15 1.000000e+00 -2.775558e-16

Supplementary Material

Figure 7-4. Graphical representation of a correspondence analysis of house task data

Figure 7-5. The clusters of K-means applied to daily stock returns for ExxonMobil and Chevron

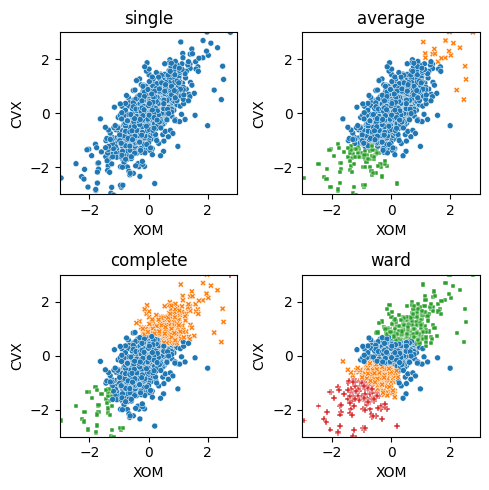

Figure 7-9. A comparison of measures of dissimilarity applied to stock data

df = sp500_px.loc[sp500_px.index >= "2011-01-01", ["XOM", "CVX"]]
fig, axes = plt.subplots(nrows=2, ncols=2, figsize=(5, 5))
for i, method in enumerate(["single", "average", "complete", "ward"]):
    ax = axes[i // 2, i % 2]
    Z = linkage(df, method=method)
    colors = [f"C{c + 1}" for c in fcluster(Z, 4, criterion="maxclust")]
    ax = sns.scatterplot(x="XOM", y="CVX", hue=colors, style=colors,
                         size=0.5, ax=ax, data=df, legend=False)

    ax.set_xlim(-3, 3)
    ax.set_ylim(-3, 3)
    ax.set_title(method)


plt.tight_layout()
plt.show()

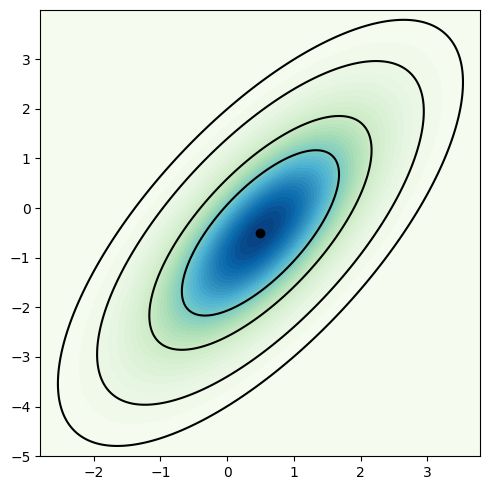

Figure 7-10. Probability contours for a two-dimensional normal distribution

mean = [0.5, -0.5]
cov = [[1, 1], [1, 2]]
probability = [0.5, 0.75, 0.95, 0.99]
def prob_level(p):
    return (1 - p) / (2 * math.pi)
levels = [prob_level(p) for p in probability]

fig, ax = plt.subplots(figsize=(5, 5))

x, y = np.mgrid[-2.8:3.8:.01, -5:4:.01]
pos = np.empty((*x.shape, 2))
pos[:, :, 0] = x; pos[:, :, 1] = y
rv = multivariate_normal(mean, cov)


CS = ax.contourf(x, y, rv.pdf(pos), cmap=cm.GnBu, levels=50)
ax.contour(CS, levels=levels, colors=["black"])
ax.plot(*mean, color="black", marker="o")


plt.tight_layout()
plt.show()
