Chapter 6: Statistical Machine Learning

library(future)
library(patchwork)
library(ranger)
library(rpart.plot)
library(tidymodels)
library(tidyverse)
library(xgboost)

set.seed(123)

# Location of the data files. Adjust this path if you keep the data
# files in a different directory.
DATA_DIR <- '../data'

Statistical Machine Learning

K-Nearest Neighbors

A Small Example: Predicting Loan Default

loan200 <- read_csv(file.path(DATA_DIR, "loan200.csv"), show_col_types = FALSE) %>%
  mutate(outcome = factor(outcome, levels = c("paid off", "default")))

train_data <- loan200 %>% dplyr::slice(-1)
newloan <- loan200 %>% dplyr::slice(1)
model <- nearest_neighbor(mode = "classification", neighbors = 20,
  weight_func = "rectangular")
knn_model <- workflow() %>%
  add_model(model) %>%
  add_formula(outcome ~ payment_inc_ratio + dti) %>%
  fit(train_data)

knn_pred <- knn_model %>% predict(newloan)
knn_pred

# A tibble: 1 × 1
  .pred_class
  <fct>
1 paid off

Standardization (Normalization, z-Scores)

newloan

# A tibble: 1 × 3
  outcome payment_inc_ratio   dti
  <fct>               <dbl> <dbl>
1 <NA>                    9  22.5

library(FNN)
loan_data <- read_csv(file.path(DATA_DIR, "loan_data.csv.gz"), show_col_types = FALSE) %>%
  select(-c(index, status)) %>%
  mutate(
    across(where(is.character), as.factor),
    outcome = factor(outcome, levels = c("paid off", "default"))
  )

loan_df <- model.matrix(~ -1 + payment_inc_ratio + dti + revol_bal +
    revol_util, data = loan_data)
newloan <- loan_df[1, , drop = FALSE]
loan_df <- loan_df[-1, ]
outcome <- loan_data[-1, ]$outcome
knn_pred <- knn(train = loan_df, test = newloan, cl = outcome, k = 5)
loan_df[attr(knn_pred, "nn.index"), ]

      payment_inc_ratio  dti revol_bal revol_util
35537           1.47212 1.46      1686       10.0
33652           3.38178 6.37      1688        8.4
25864           2.36303 1.39      1691        3.5
42954           1.28160 7.14      1684        3.9
43600           4.12244 8.98      1684        7.2

loan_df <- model.matrix(~ -1 + payment_inc_ratio + dti + revol_bal +
    revol_util, data = loan_data)
loan_std <- scale(loan_df)
newloan_std <- loan_std[1, , drop = FALSE]
loan_std <- loan_std[-1, ]
loan_df <- loan_df[-1, ]
outcome <- loan_data[-1, ]$outcome
knn_pred <- knn(train = loan_std, test = newloan_std, cl = outcome, k = 5)
loan_df[attr(knn_pred, "nn.index"), ]

      payment_inc_ratio  dti revol_bal revol_util
2081            2.61091 1.03      1218        9.7
1439            2.34343 0.51       278        9.9
30216           2.71200 1.34      1075        8.5
28543           2.39760 0.74      2917        7.4
44738           2.34309 1.37       488        7.2

KNN as a Feature Engine

rec <- recipe(outcome ~ dti + revol_bal + revol_util + open_acc +
    delinq_2yrs_zero + pub_rec_zero, data = loan_data)
model <- nearest_neighbor(mode = "classification", neighbors = 20,
  weight_func = "rectangular")
borrow_knn <- workflow() %>%
  add_model(nearest_neighbor(mode = "classification", neighbors = 20)) %>%
  add_recipe(rec) %>%
  fit(loan_data)
borrow_feature <- borrow_knn %>%
  predict(loan_data, type = "prob") %>%
  pluck(".pred_default")
summary(borrow_feature)

   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
 0.0000  0.3819  0.5017  0.5001  0.6200  1.0000

Tree Models

A Simple Example

loan3000 <- read_csv(file.path(DATA_DIR, "loan3000.csv"), show_col_types = FALSE) %>%
  mutate(outcome = factor(outcome, levels = c("paid off", "default")))

loan_tree <- decision_tree(mode = "classification", engine = "rpart") %>%
  fit(outcome ~ borrower_score + payment_inc_ratio, data = loan3000)

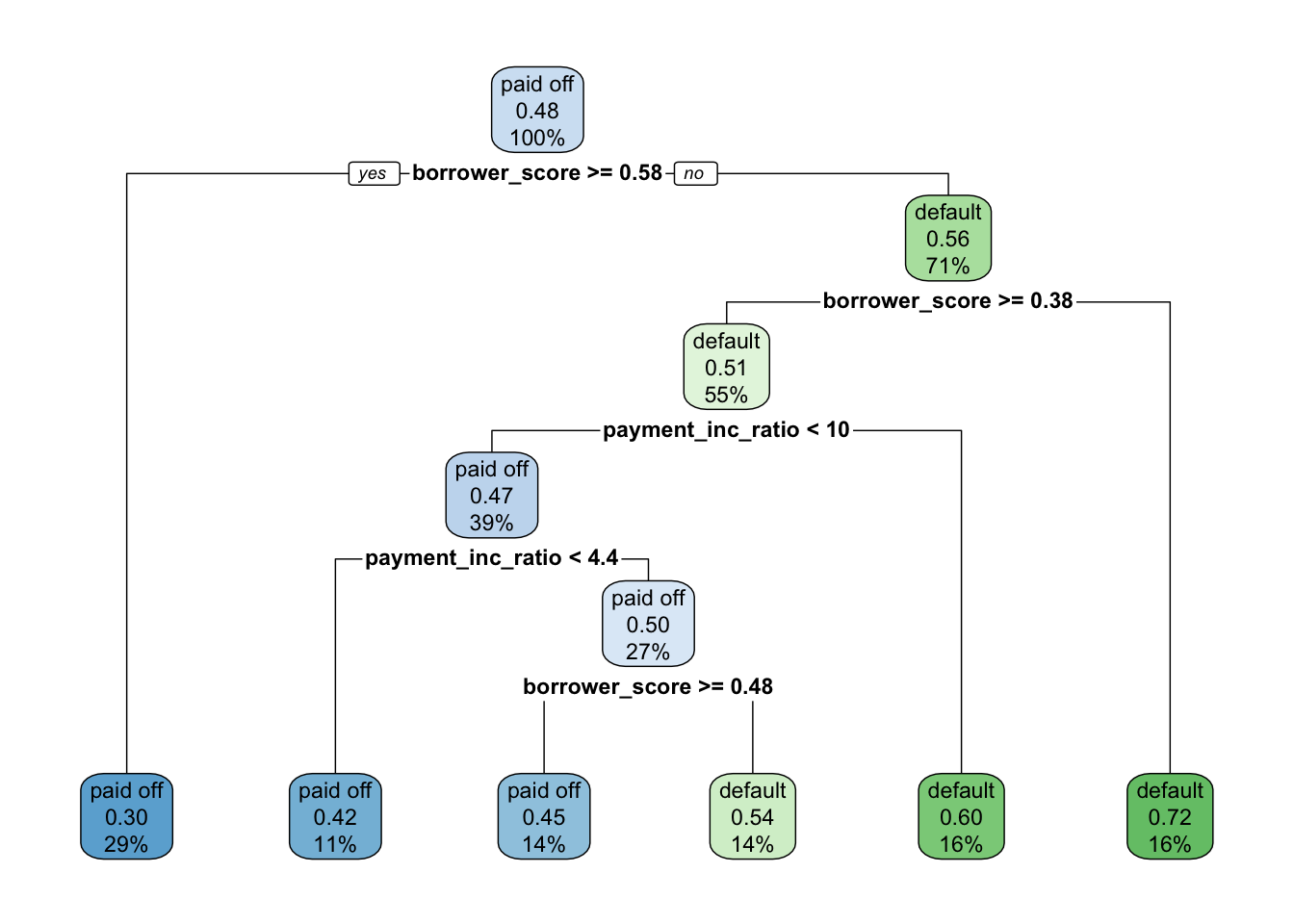

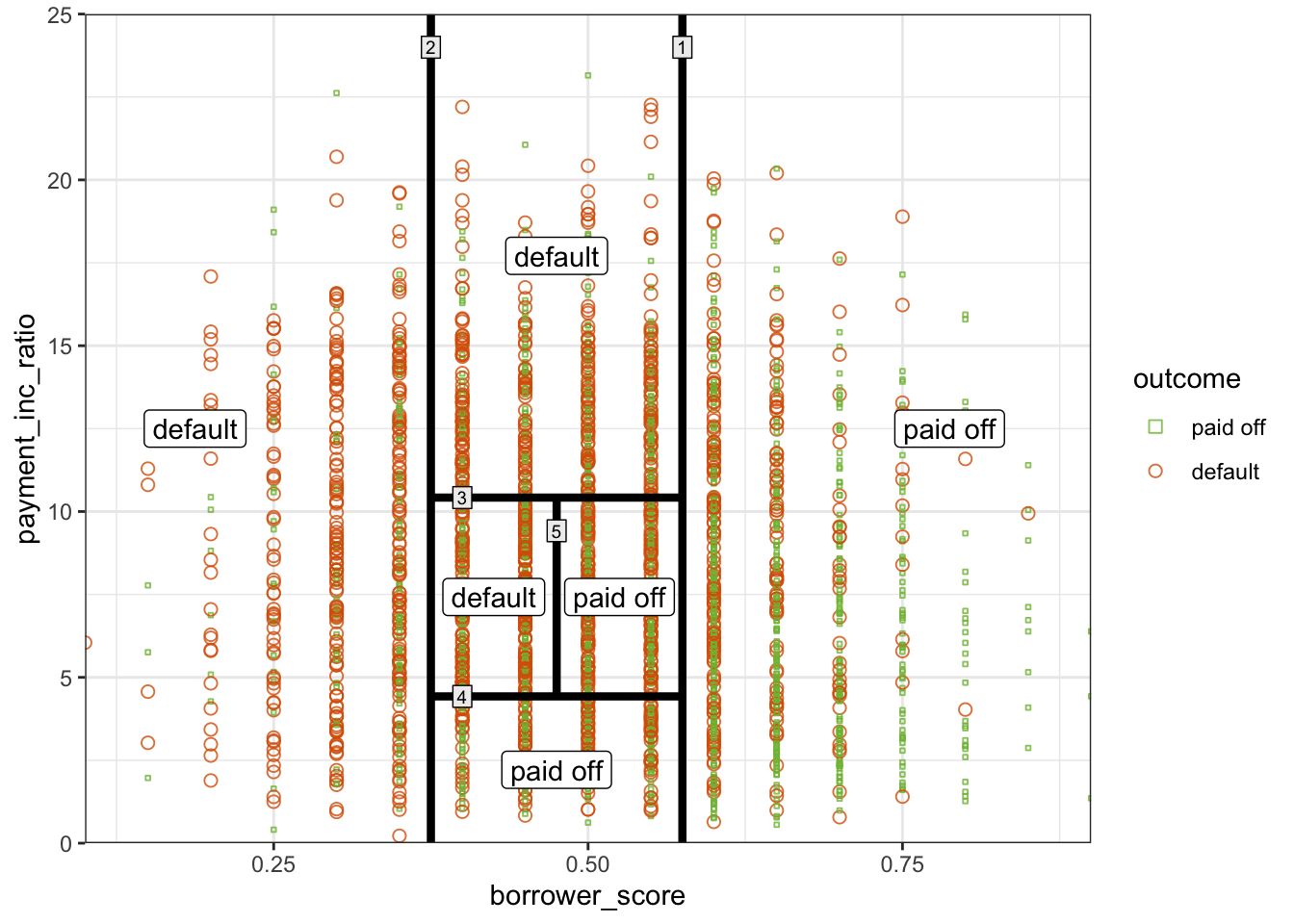

rpart.plot(loan_tree %>% extract_fit_engine(), roundint = FALSE)

loan_tree

parsnip model object

n= 3000

node), split, n, loss, yval, (yprob)
      * denotes terminal node

 1) root 3000 1445 paid off (0.5183333 0.4816667)
   2) borrower_score>=0.575 878  261 paid off (0.7027335 0.2972665) *
   3) borrower_score< 0.575 2122  938 default (0.4420358 0.5579642)
     6) borrower_score>=0.375 1639  802 default (0.4893228 0.5106772)
      12) payment_inc_ratio< 10.42265 1157  547 paid off (0.5272256 0.4727744)
        24) payment_inc_ratio< 4.42601 334  139 paid off (0.5838323 0.4161677) *
        25) payment_inc_ratio>=4.42601 823  408 paid off (0.5042527 0.4957473)
          50) borrower_score>=0.475 418  190 paid off (0.5454545 0.4545455) *
          51) borrower_score< 0.475 405  187 default (0.4617284 0.5382716) *
      13) payment_inc_ratio>=10.42265 482  192 default (0.3983402 0.6016598) *
     7) borrower_score< 0.375 483  136 default (0.2815735 0.7184265) *

Bagging and the Random Forest

Random Forest

rf <- rand_forest(mode = "classification") %>%
  set_engine("ranger", seed = 123) %>%
  fit(outcome ~ borrower_score + payment_inc_ratio, data = loan3000)
rf

parsnip model object

Ranger result

Call:
 ranger::ranger(x = maybe_data_frame(x), y = y, seed = ~123, num.threads = 1,      verbose = FALSE, probability = TRUE)

Type:                             Probability estimation
Number of trees:                  500
Sample size:                      3000
Number of independent variables:  2
Mtry:                             1
Target node size:                 10
Variable importance mode:         none
Splitrule:                        gini
OOB prediction error (Brier s.):  0.2300053

num_trees <- c(1, seq(5, 500, 5))
oob_scores <- c()
for (trees in num_trees) {
  rf <- rand_forest(mode = "classification", trees = trees) %>%
    set_engine("ranger", seed = 123) %>%
    fit(outcome ~ borrower_score + payment_inc_ratio, data = loan3000)
  oob_scores <- c(oob_scores, (rf %>% extract_fit_engine())$prediction.error)
}

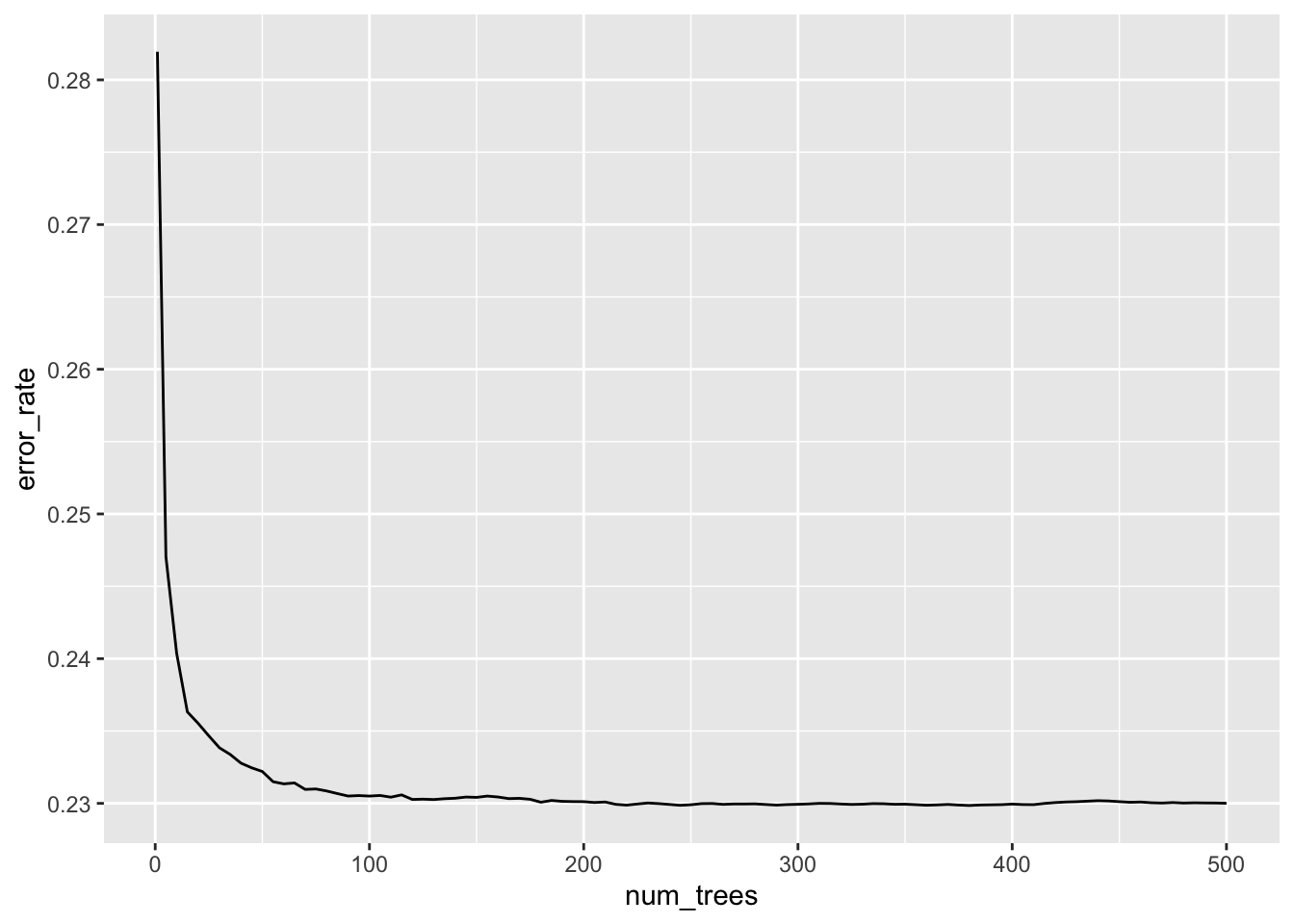

error_df <- tibble(error_rate = oob_scores, num_trees = num_trees)
ggplot(error_df, aes(x = num_trees, y = error_rate)) +
  geom_line()

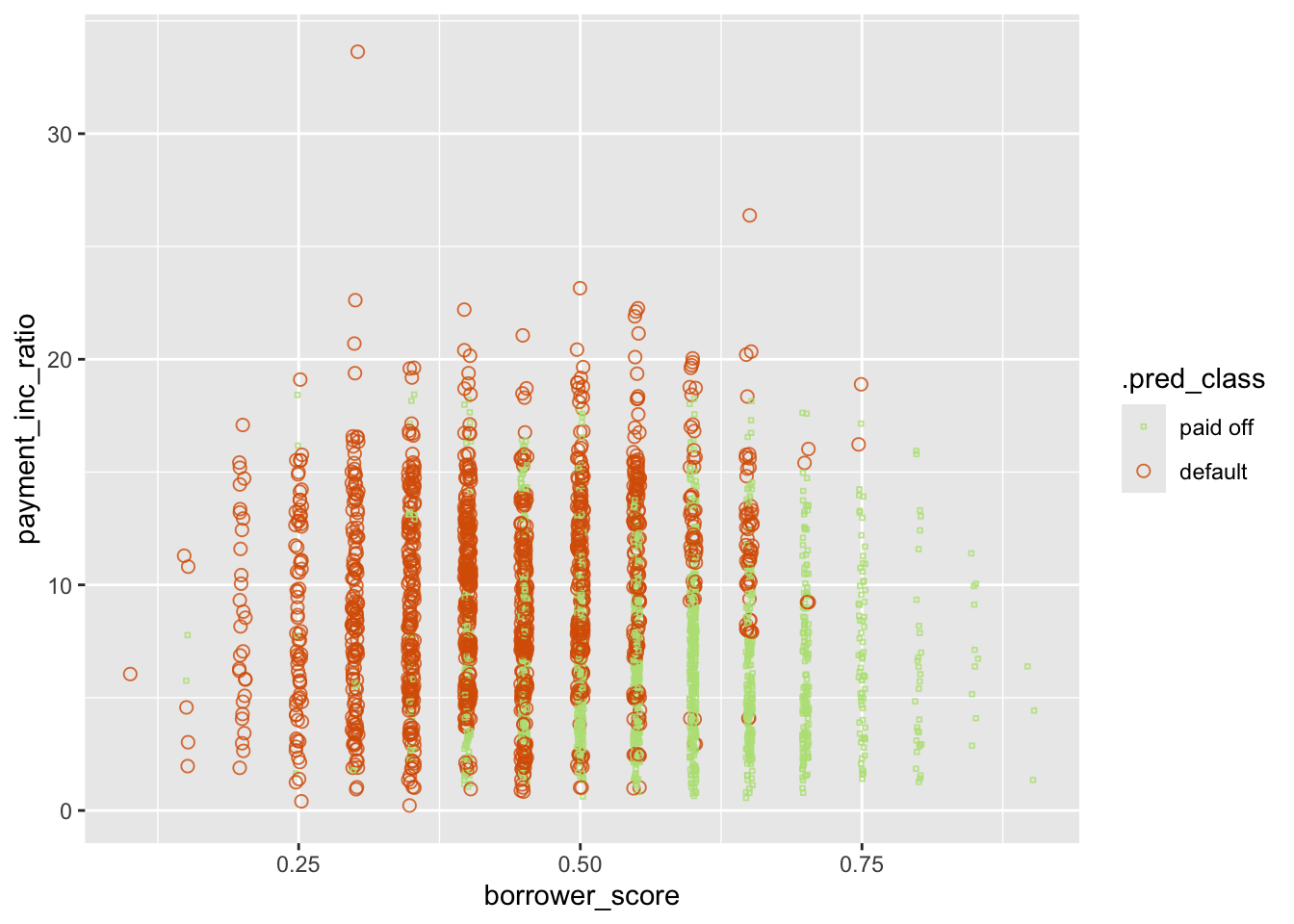

rf_df <- augment(rf, loan3000)
ggplot(data = rf_df, aes(x = borrower_score, y = payment_inc_ratio,
    shape = .pred_class, color = .pred_class, size = .pred_class)) +
  geom_jitter(alpha = 0.8, height = 0, width = 0.003) +
  scale_color_manual(values = c("paid off" = "#b8e186", "default" = "#d95f02")) +
  scale_shape_manual(values = c("paid off" = 0, "default" = 1)) +
  scale_size_manual(values = c("paid off" = 0.5, "default" = 2))

Variable Importance

rf_all <- rand_forest(mode = "classification") %>%
  set_engine("ranger", seed = 123, importance = "impurity") %>%
  fit(outcome ~ ., data = loan_data)
rf_all

parsnip model object

Ranger result

Call:
 ranger::ranger(x = maybe_data_frame(x), y = y, seed = ~123, importance = ~"impurity",      num.threads = 1, verbose = FALSE, probability = TRUE)

Type:                             Probability estimation
Number of trees:                  500
Sample size:                      45342
Number of independent variables:  18
Mtry:                             4
Target node size:                 10
Variable importance mode:         impurity
Splitrule:                        gini
OOB prediction error (Brier s.):  0.2123043

rf_permutation <- rand_forest(mode = "classification") %>%
  set_engine("ranger", seed = 123, importance = "permutation") %>%
  fit(outcome ~ ., data = loan_data)

varimp_gini <- importance(rf_all %>% extract_fit_engine())
varimp_perm <- importance(rf_permutation %>% extract_fit_engine())
df <- tibble(
  predictor = names(varimp_gini),
  impurity = varimp_gini,
  permutation = varimp_perm
)

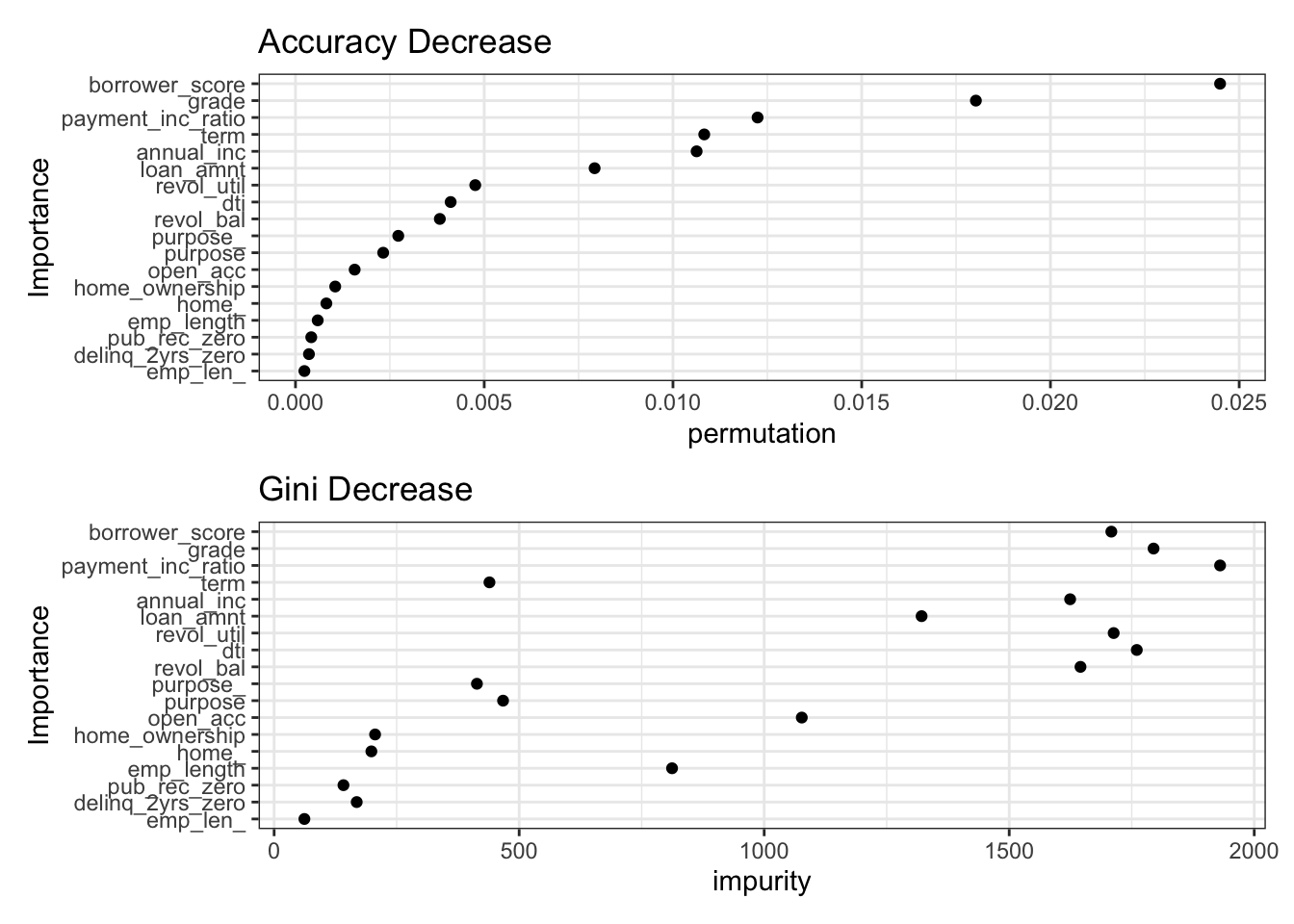

g1 <- ggplot(df, aes(x = permutation, y = reorder(predictor, permutation))) +
  geom_point() +
  labs(y = "Importance", title = "Accuracy Decrease")
g2 <- ggplot(df, aes(x = impurity, y = reorder(predictor, permutation))) +
  geom_point() +
  labs(y = "Importance", title = "Gini Decrease")
(g1 + theme_bw()) / (g2 + theme_bw())

Boosting

XGBoost

xgb <- boost_tree(mode = "classification",
  trees = 100, learn_rate = 0.1, sample_size = 0.63) %>%
  fit(outcome ~ borrower_score + payment_inc_ratio, data = loan3000)

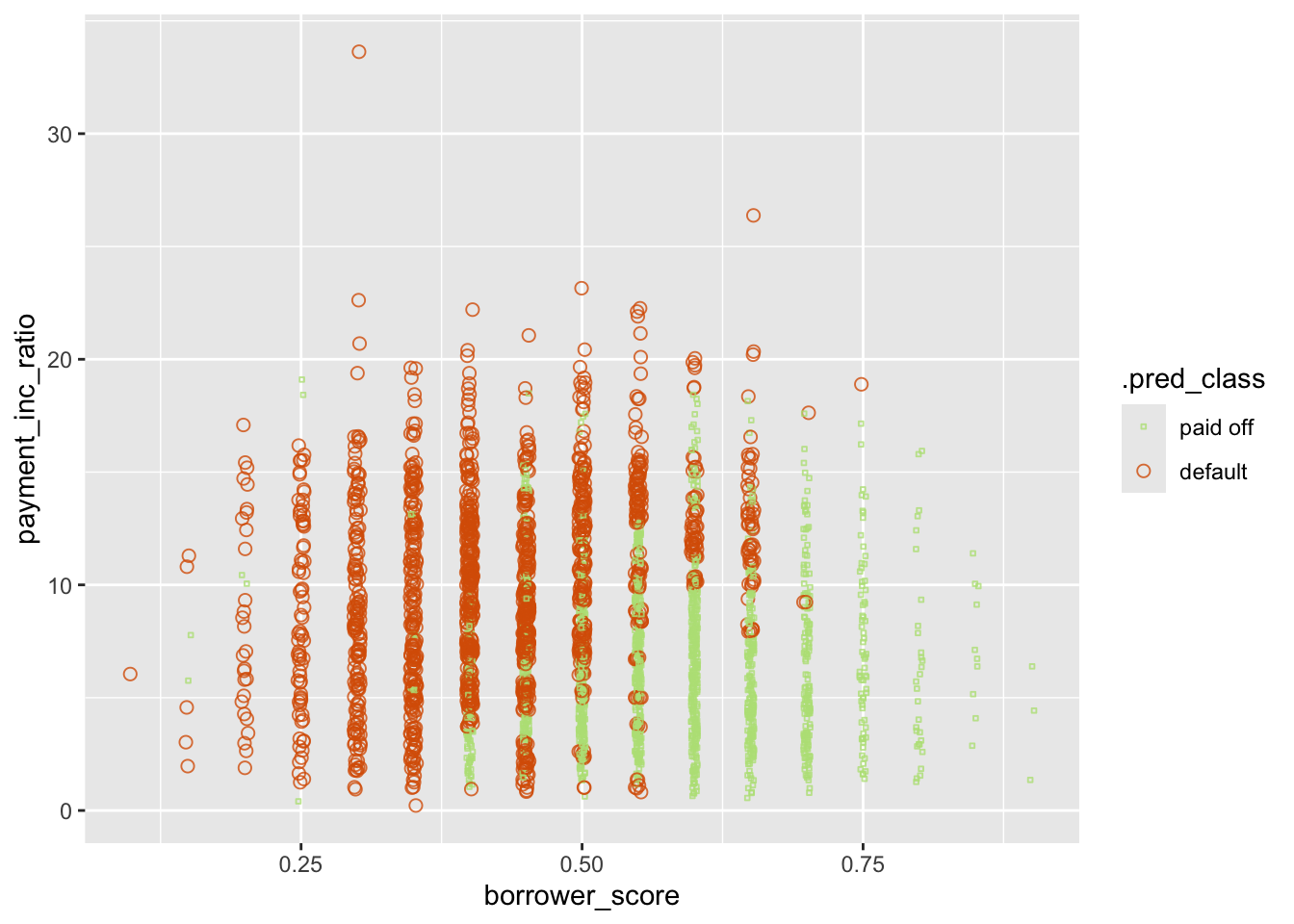

xgb_df <- augment(xgb, loan3000)
ggplot(data = xgb_df, aes(x = borrower_score, y = payment_inc_ratio,
    color = .pred_class, shape = .pred_class, size = .pred_class)) +
  geom_jitter(alpha = 0.8, height = 0, width = 0.003) +
  scale_color_manual(values = c("paid off" = "#b8e186", "default" = "#d95f02")) +
  scale_shape_manual(values = c("paid off" = 0, "default" = 1)) +
  scale_size_manual(values = c("paid off" = 0.5, "default" = 2))

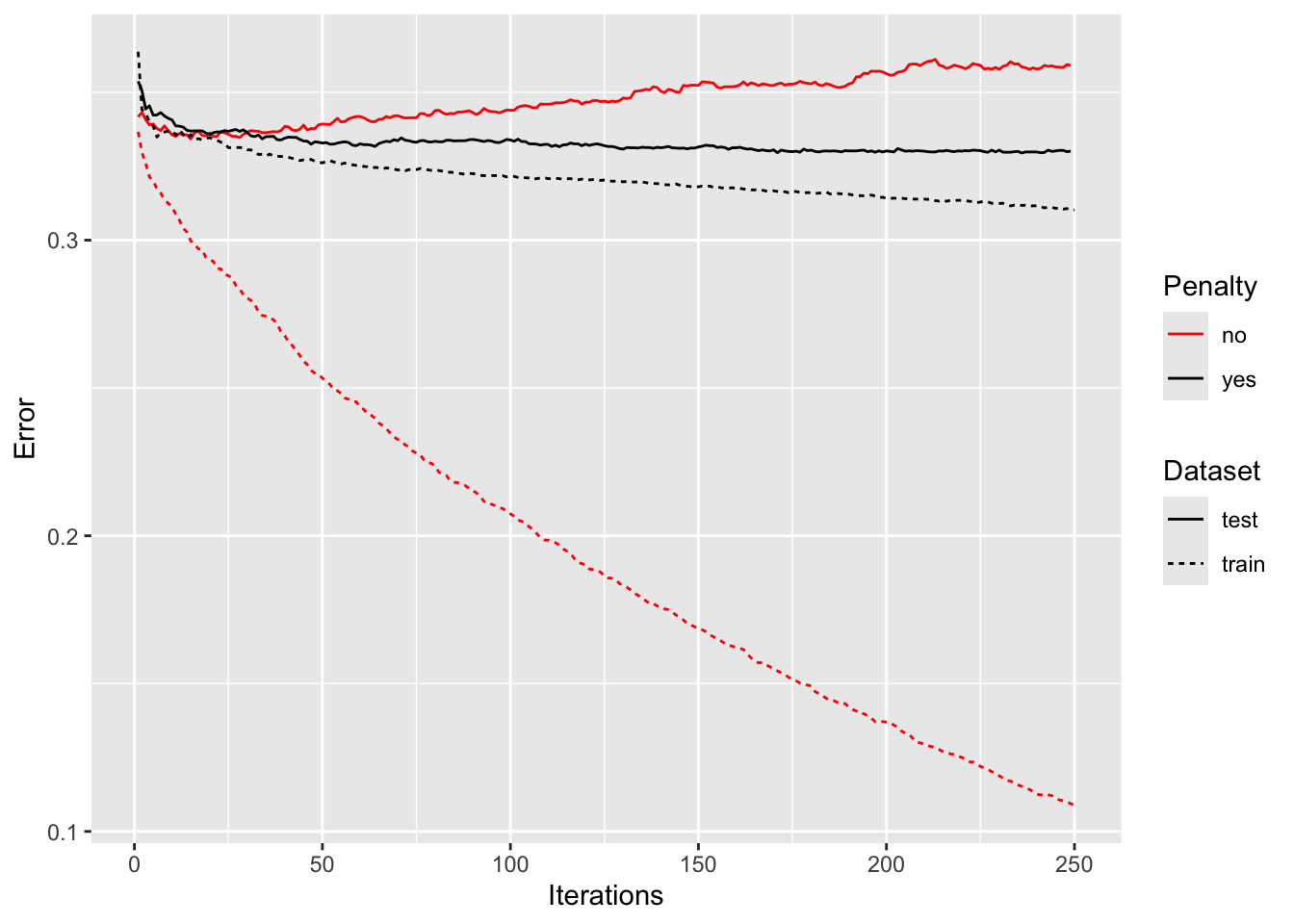

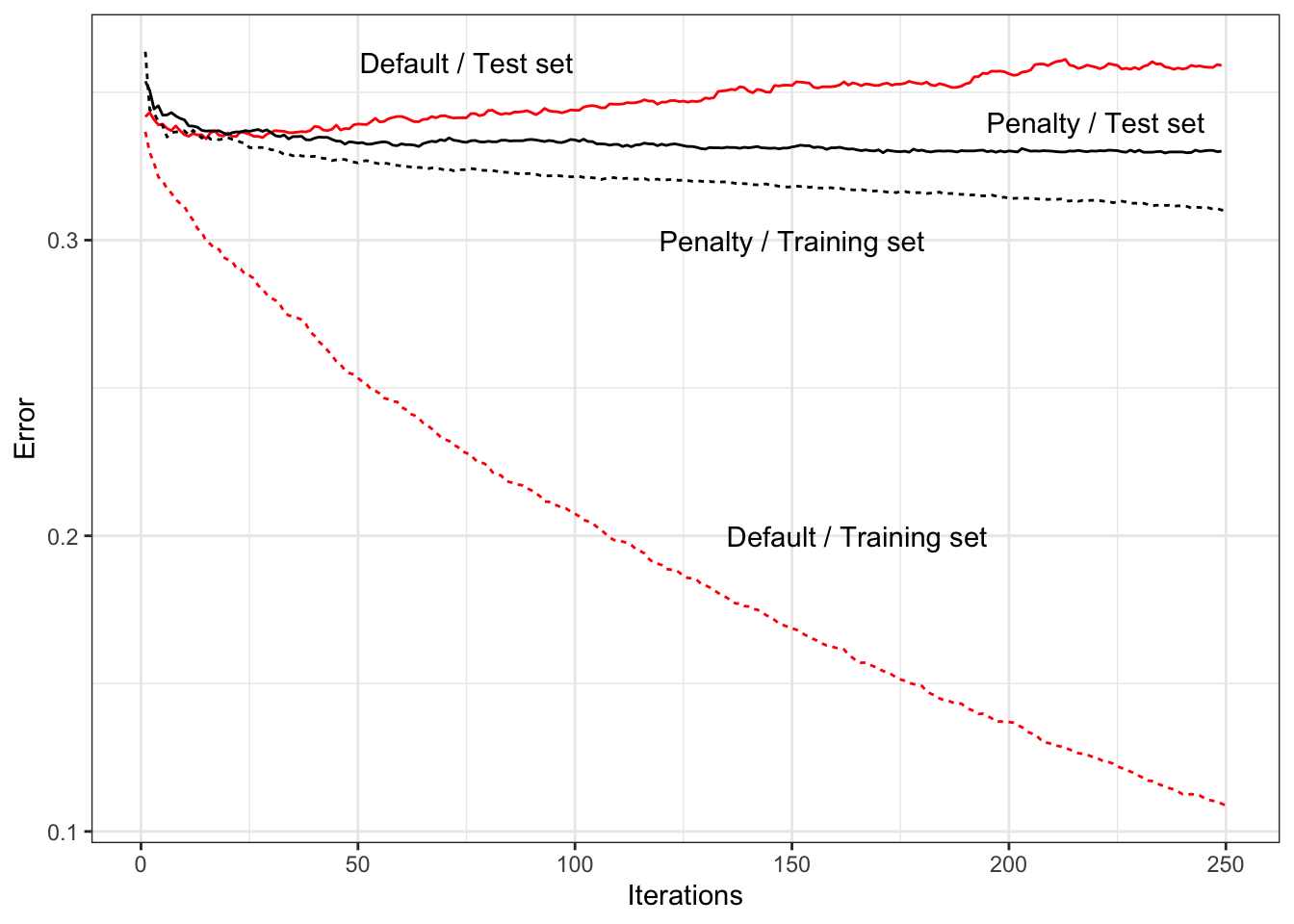

Regularization: Avoiding Overfitting

set.seed(400820)
loan_split <- initial_split(loan_data, prop = 0.75)
train_data <- training(loan_split)
test_data <- testing(loan_split)
train_x <- data.matrix(train_data %>% select(-outcome))
train_y <- factor(train_data$outcome, levels = c("paid off", "default"))
test_x <- data.matrix(test_data %>% select(-outcome))
test_y <- factor(test_data$outcome, levels = c("paid off", "default"))

xgb_default <- xgboost(x = train_x, y = train_y,
  objective = "binary:logistic", nrounds = 250, verbosity = 1,
  eval_metric = "error")

[1] train-error:0.336646
[2] train-error:0.329677
[3] train-error:0.326031
[4] train-error:0.321355
[5] train-error:0.320032
[6] train-error:0.317356
[7] train-error:0.315915
[8] train-error:0.313739
[9] train-error:0.312445
[10]    train-error:0.311386
[11]    train-error:0.308740
[12]    train-error:0.306769
[13]    train-error:0.303946
[14]    train-error:0.302711
[15]    train-error:0.299712
[16]    train-error:0.298653
[17]    train-error:0.297065
[18]    train-error:0.296859
[19]    train-error:0.294183
[20]    train-error:0.293419
[21]    train-error:0.292801
[22]    train-error:0.290508
[23]    train-error:0.290213
[24]    train-error:0.288390
[25]    train-error:0.288008
[26]    train-error:0.287067
[27]    train-error:0.284656
[28]    train-error:0.283450
[29]    train-error:0.281597
[30]    train-error:0.280421
[31]    train-error:0.279627
[32]    train-error:0.278304
[33]    train-error:0.275745
[34]    train-error:0.274540
[35]    train-error:0.274246
[36]    train-error:0.273716
[37]    train-error:0.273099
[38]    train-error:0.271599
[39]    train-error:0.268953
[40]    train-error:0.267659
[41]    train-error:0.265659
[42]    train-error:0.264336
[43]    train-error:0.262689
[44]    train-error:0.260983
[45]    train-error:0.259013
[46]    train-error:0.257925
[47]    train-error:0.255955
[48]    train-error:0.255014
[49]    train-error:0.254573
[50]    train-error:0.253338
[51]    train-error:0.252161
[52]    train-error:0.251220
[53]    train-error:0.249574
[54]    train-error:0.249044
[55]    train-error:0.248133
[56]    train-error:0.246604
[57]    train-error:0.246162
[58]    train-error:0.245398
[59]    train-error:0.245339
[60]    train-error:0.243516
[61]    train-error:0.242751
[62]    train-error:0.241252
[63]    train-error:0.240752
[64]    train-error:0.239752
[65]    train-error:0.238193
[66]    train-error:0.237282
[67]    train-error:0.236223
[68]    train-error:0.234812
[69]    train-error:0.233518
[70]    train-error:0.232606
[71]    train-error:0.232077
[72]    train-error:0.230753
[73]    train-error:0.230048
[74]    train-error:0.228607
[75]    train-error:0.227989
[76]    train-error:0.227372
[77]    train-error:0.225695
[78]    train-error:0.224813
[79]    train-error:0.224519
[80]    train-error:0.223519
[81]    train-error:0.221461
[82]    train-error:0.220814
[83]    train-error:0.220373
[84]    train-error:0.218608
[85]    train-error:0.218138
[86]    train-error:0.217932
[87]    train-error:0.217315
[88]    train-error:0.216991
[89]    train-error:0.216050
[90]    train-error:0.215344
[91]    train-error:0.214462
[92]    train-error:0.213286
[93]    train-error:0.211580
[94]    train-error:0.211492
[95]    train-error:0.210610
[96]    train-error:0.210198
[97]    train-error:0.209463
[98]    train-error:0.209198
[99]    train-error:0.208199
[100]   train-error:0.207434
[101]   train-error:0.206581
[102]   train-error:0.205346
[103]   train-error:0.204905
[104]   train-error:0.204317
[105]   train-error:0.203052
[106]   train-error:0.202053
[107]   train-error:0.200729
[108]   train-error:0.199406
[109]   train-error:0.198553
[110]   train-error:0.198524
[111]   train-error:0.198024
[112]   train-error:0.197642
[113]   train-error:0.196877
[114]   train-error:0.195583
[115]   train-error:0.194848
[116]   train-error:0.194083
[117]   train-error:0.192260
[118]   train-error:0.191025
[119]   train-error:0.190584
[120]   train-error:0.190114
[121]   train-error:0.188761
[122]   train-error:0.188555
[123]   train-error:0.188408
[124]   train-error:0.187673
[125]   train-error:0.186320
[126]   train-error:0.185732
[127]   train-error:0.185644
[128]   train-error:0.185203
[129]   train-error:0.183821
[130]   train-error:0.183291
[131]   train-error:0.182585
[132]   train-error:0.181644
[133]   train-error:0.180645
[134]   train-error:0.179792
[135]   train-error:0.179086
[136]   train-error:0.178027
[137]   train-error:0.177116
[138]   train-error:0.177116
[139]   train-error:0.176263
[140]   train-error:0.176087
[141]   train-error:0.175234
[142]   train-error:0.174999
[143]   train-error:0.174263
[144]   train-error:0.173205
[145]   train-error:0.172470
[146]   train-error:0.171529
[147]   train-error:0.170352
[148]   train-error:0.169794
[149]   train-error:0.169235
[150]   train-error:0.168676
[151]   train-error:0.168235
[152]   train-error:0.167529
[153]   train-error:0.166471
[154]   train-error:0.165853
[155]   train-error:0.165030
[156]   train-error:0.164442
[157]   train-error:0.163559
[158]   train-error:0.162883
[159]   train-error:0.162677
[160]   train-error:0.162148
[161]   train-error:0.161883
[162]   train-error:0.161560
[163]   train-error:0.159913
[164]   train-error:0.158707
[165]   train-error:0.157560
[166]   train-error:0.157031
[167]   train-error:0.157119
[168]   train-error:0.156325
[169]   train-error:0.155737
[170]   train-error:0.154914
[171]   train-error:0.154296
[172]   train-error:0.153649
[173]   train-error:0.153061
[174]   train-error:0.152120
[175]   train-error:0.151414
[176]   train-error:0.150944
[177]   train-error:0.150179
[178]   train-error:0.149856
[179]   train-error:0.149503
[180]   train-error:0.149180
[181]   train-error:0.147327
[182]   train-error:0.146592
[183]   train-error:0.145974
[184]   train-error:0.145004
[185]   train-error:0.144416
[186]   train-error:0.144210
[187]   train-error:0.143622
[188]   train-error:0.143151
[189]   train-error:0.143239
[190]   train-error:0.142122
[191]   train-error:0.141269
[192]   train-error:0.140710
[193]   train-error:0.139740
[194]   train-error:0.139828
[195]   train-error:0.139093
[196]   train-error:0.138299
[197]   train-error:0.137093
[198]   train-error:0.137182
[199]   train-error:0.137123
[200]   train-error:0.137005
[201]   train-error:0.136799
[202]   train-error:0.135947
[203]   train-error:0.135270
[204]   train-error:0.133947
[205]   train-error:0.133241
[206]   train-error:0.132859
[207]   train-error:0.131477
[208]   train-error:0.130095
[209]   train-error:0.129948
[210]   train-error:0.129507
[211]   train-error:0.129007
[212]   train-error:0.128713
[213]   train-error:0.128213
[214]   train-error:0.127713
[215]   train-error:0.127036
[216]   train-error:0.126448
[217]   train-error:0.126272
[218]   train-error:0.125948
[219]   train-error:0.125360
[220]   train-error:0.125096
[221]   train-error:0.124302
[222]   train-error:0.123596
[223]   train-error:0.123449
[224]   train-error:0.122919
[225]   train-error:0.122008
[226]   train-error:0.121420
[227]   train-error:0.120979
[228]   train-error:0.120214
[229]   train-error:0.119744
[230]   train-error:0.118773
[231]   train-error:0.118097
[232]   train-error:0.117215
[233]   train-error:0.117038
[234]   train-error:0.116215
[235]   train-error:0.115715
[236]   train-error:0.115244
[237]   train-error:0.114597
[238]   train-error:0.114215
[239]   train-error:0.113451
[240]   train-error:0.112598
[241]   train-error:0.112333
[242]   train-error:0.112627
[243]   train-error:0.112392
[244]   train-error:0.112098
[245]   train-error:0.111304
[246]   train-error:0.110657
[247]   train-error:0.110363
[248]   train-error:0.110039
[249]   train-error:0.109392
[250]   train-error:0.108775

pred_default <- predict(xgb_default, test_x)
error_default <- abs((as.numeric(test_y) - 1) - pred_default) > 0.5
attributes(xgb_default)$evaluation_log[250, ]

    iter train_error
   <num>       <num>
1:   250   0.1087749

mean(error_default)

[1] 0.3591214

xgb_penalty <- xgboost(x = train_x, y = train_y,
  learning_rate = 0.1, subsample = 0.63, reg_lambda = 1000,
  objective = "binary:logistic", nrounds = 250, verbosity = 1,
  eval_metric = "error")

[1] train-error:0.363730
[2] train-error:0.344116
[3] train-error:0.342969
[4] train-error:0.340116
[5] train-error:0.338646
[6] train-error:0.334882
[7] train-error:0.336411
[8] train-error:0.336588
[9] train-error:0.336911
[10]    train-error:0.336999
[11]    train-error:0.335588
[12]    train-error:0.337176
[13]    train-error:0.335794
[14]    train-error:0.334529
[15]    train-error:0.335676
[16]    train-error:0.334147
[17]    train-error:0.334323
[18]    train-error:0.333970
[19]    train-error:0.334323
[20]    train-error:0.334706
[21]    train-error:0.334118
[22]    train-error:0.333765
[23]    train-error:0.333118
[24]    train-error:0.332765
[25]    train-error:0.331294
[26]    train-error:0.331294
[27]    train-error:0.331353
[28]    train-error:0.331324
[29]    train-error:0.331236
[30]    train-error:0.330559
[31]    train-error:0.330530
[32]    train-error:0.329854
[33]    train-error:0.328971
[34]    train-error:0.329060
[35]    train-error:0.328530
[36]    train-error:0.329089
[37]    train-error:0.328471
[38]    train-error:0.328413
[39]    train-error:0.328295
[40]    train-error:0.328354
[41]    train-error:0.328030
[42]    train-error:0.327677
[43]    train-error:0.327530
[44]    train-error:0.326913
[45]    train-error:0.327178
[46]    train-error:0.327295
[47]    train-error:0.327295
[48]    train-error:0.326678
[49]    train-error:0.326413
[50]    train-error:0.326119
[51]    train-error:0.326678
[52]    train-error:0.326913
[53]    train-error:0.326442
[54]    train-error:0.326119
[55]    train-error:0.325795
[56]    train-error:0.326060
[57]    train-error:0.325884
[58]    train-error:0.325472
[59]    train-error:0.325296
[60]    train-error:0.325119
[61]    train-error:0.324943
[62]    train-error:0.324796
[63]    train-error:0.324355
[64]    train-error:0.324619
[65]    train-error:0.324472
[66]    train-error:0.324119
[67]    train-error:0.324443
[68]    train-error:0.324266
[69]    train-error:0.324119
[70]    train-error:0.323708
[71]    train-error:0.323913
[72]    train-error:0.323472
[73]    train-error:0.323855
[74]    train-error:0.323825
[75]    train-error:0.323855
[76]    train-error:0.324237
[77]    train-error:0.324031
[78]    train-error:0.323796
[79]    train-error:0.323590
[80]    train-error:0.323590
[81]    train-error:0.323561
[82]    train-error:0.323296
[83]    train-error:0.322855
[84]    train-error:0.323002
[85]    train-error:0.322825
[86]    train-error:0.322649
[87]    train-error:0.322473
[88]    train-error:0.322267
[89]    train-error:0.322561
[90]    train-error:0.322502
[91]    train-error:0.322296
[92]    train-error:0.321884
[93]    train-error:0.321826
[94]    train-error:0.321737
[95]    train-error:0.321826
[96]    train-error:0.321855
[97]    train-error:0.321679
[98]    train-error:0.321767
[99]    train-error:0.321414
[100]   train-error:0.321502
[101]   train-error:0.321561
[102]   train-error:0.321237
[103]   train-error:0.321326
[104]   train-error:0.321090
[105]   train-error:0.321032
[106]   train-error:0.320532
[107]   train-error:0.320826
[108]   train-error:0.321002
[109]   train-error:0.321179
[110]   train-error:0.320796
[111]   train-error:0.320826
[112]   train-error:0.320943
[113]   train-error:0.320796
[114]   train-error:0.320590
[115]   train-error:0.320738
[116]   train-error:0.320826
[117]   train-error:0.320355
[118]   train-error:0.320414
[119]   train-error:0.320649
[120]   train-error:0.320267
[121]   train-error:0.320385
[122]   train-error:0.320502
[123]   train-error:0.320473
[124]   train-error:0.320208
[125]   train-error:0.320355
[126]   train-error:0.320149
[127]   train-error:0.319944
[128]   train-error:0.319944
[129]   train-error:0.319973
[130]   train-error:0.319738
[131]   train-error:0.319855
[132]   train-error:0.319738
[133]   train-error:0.319649
[134]   train-error:0.319708
[135]   train-error:0.319708
[136]   train-error:0.319473
[137]   train-error:0.319208
[138]   train-error:0.319179
[139]   train-error:0.319120
[140]   train-error:0.319032
[141]   train-error:0.318797
[142]   train-error:0.318708
[143]   train-error:0.318738
[144]   train-error:0.319032
[145]   train-error:0.318620
[146]   train-error:0.318503
[147]   train-error:0.318238
[148]   train-error:0.318091
[149]   train-error:0.317973
[150]   train-error:0.318062
[151]   train-error:0.318297
[152]   train-error:0.318150
[153]   train-error:0.318297
[154]   train-error:0.317856
[155]   train-error:0.318091
[156]   train-error:0.317709
[157]   train-error:0.317620
[158]   train-error:0.317591
[159]   train-error:0.317738
[160]   train-error:0.317503
[161]   train-error:0.317562
[162]   train-error:0.317268
[163]   train-error:0.317297
[164]   train-error:0.317003
[165]   train-error:0.317003
[166]   train-error:0.317121
[167]   train-error:0.316885
[168]   train-error:0.316621
[169]   train-error:0.316621
[170]   train-error:0.316709
[171]   train-error:0.316474
[172]   train-error:0.316268
[173]   train-error:0.316385
[174]   train-error:0.316062
[175]   train-error:0.316474
[176]   train-error:0.316444
[177]   train-error:0.316179
[178]   train-error:0.315944
[179]   train-error:0.316091
[180]   train-error:0.316032
[181]   train-error:0.315768
[182]   train-error:0.315915
[183]   train-error:0.315974
[184]   train-error:0.316268
[185]   train-error:0.315621
[186]   train-error:0.315768
[187]   train-error:0.315797
[188]   train-error:0.315650
[189]   train-error:0.315474
[190]   train-error:0.315533
[191]   train-error:0.315297
[192]   train-error:0.315268
[193]   train-error:0.315033
[194]   train-error:0.315003
[195]   train-error:0.315003
[196]   train-error:0.315268
[197]   train-error:0.314915
[198]   train-error:0.314386
[199]   train-error:0.314533
[200]   train-error:0.314092
[201]   train-error:0.314121
[202]   train-error:0.314209
[203]   train-error:0.314121
[204]   train-error:0.314209
[205]   train-error:0.314033
[206]   train-error:0.314003
[207]   train-error:0.313886
[208]   train-error:0.313886
[209]   train-error:0.313768
[210]   train-error:0.313886
[211]   train-error:0.313798
[212]   train-error:0.313915
[213]   train-error:0.313356
[214]   train-error:0.313209
[215]   train-error:0.313592
[216]   train-error:0.313151
[217]   train-error:0.313445
[218]   train-error:0.313356
[219]   train-error:0.313474
[220]   train-error:0.313474
[221]   train-error:0.313356
[222]   train-error:0.313151
[223]   train-error:0.313062
[224]   train-error:0.312680
[225]   train-error:0.312886
[226]   train-error:0.313180
[227]   train-error:0.312915
[228]   train-error:0.312474
[229]   train-error:0.312504
[230]   train-error:0.312415
[231]   train-error:0.312474
[232]   train-error:0.312092
[233]   train-error:0.311592
[234]   train-error:0.311827
[235]   train-error:0.311739
[236]   train-error:0.311769
[237]   train-error:0.311798
[238]   train-error:0.311474
[239]   train-error:0.311621
[240]   train-error:0.311621
[241]   train-error:0.311416
[242]   train-error:0.310916
[243]   train-error:0.311092
[244]   train-error:0.311092
[245]   train-error:0.310769
[246]   train-error:0.310975
[247]   train-error:0.310504
[248]   train-error:0.310680
[249]   train-error:0.310181
[250]   train-error:0.310210

pred_penalty <- predict(xgb_penalty, test_x)
error_penalty <- abs((as.numeric(test_y) - 1) - pred_penalty) > 0.5
attributes(xgb_penalty)$evaluation_log[250, ]

    iter train_error
   <num>       <num>
1:   250     0.31021

mean(error_penalty)

[1] 0.3300988

error_default <- rep(0, 249)
error_penalty <- rep(0, 249)
for (ntree_limit in 1:249) {
  iteration_range <- c(1, ntree_limit + 1)
  pred_def <- predict(xgb_default, test_x, iteration_range = iteration_range)
  error_default[ntree_limit] <- mean(abs(as.numeric(test_y)-1-pred_def) >= 0.5)
  pred_pen <- predict(xgb_penalty, test_x, iteration_range = iteration_range)
  error_penalty[ntree_limit] <- mean(abs(as.numeric(test_y)-1-pred_pen) >= 0.5)
}

errors <- bind_rows(
  tibble(Iterations = 1:250, Dataset = "train", Penalty = "no",
    Error = attributes(xgb_default)$evaluation_log$train_error),
  tibble(Iterations = 1:249, Dataset = "test", Penalty = "no",
    Error = error_default),
  tibble(Iterations = 1:250, Dataset = "train", Penalty = "yes",
    Error = attributes(xgb_penalty)$evaluation_log$train_error),
  tibble(Iterations = 1:249, Dataset = "test", Penalty = "yes",
    Error = error_penalty),
)
ggplot(errors, aes(x = Iterations, y = Error, color = Penalty,
    linetype = Dataset)) +
  geom_line() +
  scale_color_manual(values = c("red", "black"))

last_plot()  +
  theme_bw() +
  annotate("text", 165, 0.2, label="Default / Training set") +
  annotate("text", 150, 0.3, label="Penalty / Training set") +
  annotate("text", 220, 0.34, label="Penalty / Test set") +
  annotate("text", 75, 0.36, label="Default / Test set") +
  theme(legend.position = "none")

Hyperparameters and Cross-Validation

set.seed(1234)
resamples <- vfold_cv(loan_data, v = 5)
grid <- crossing(
  tree_depth = c(3, 6, 12),
  learn_rate = c(0.1, 0.5, 0.9),
)

plan(multisession, workers = parallel::detectCores(logical = FALSE))

rec <- recipe(outcome ~ ., data = loan_data) %>%
  step_dummy(all_nominal_predictors())
model <- boost_tree(mode = "classification",
  tree_depth = tune(), learn_rate = tune())

wf <- workflow() %>%
  add_model(model) %>%
  add_recipe(rec)

model_cv <- tune_grid(wf, resamples, grid = grid)

collect_metrics(model_cv) %>%
  filter(.metric == "accuracy") %>%
  mutate(error_rate = round(100 * (1 - mean), 2)) %>%
  select(c(tree_depth, learn_rate, error_rate)) %>%
  arrange(error_rate)

# A tibble: 9 × 3
  tree_depth learn_rate error_rate
       <dbl>      <dbl>      <dbl>
1          3        0.5       33.3
2          3        0.9       33.5
3          6        0.1       33.5
4          6        0.5       33.8
5          3        0.1       34.2
6         12        0.1       34.7
7          6        0.9       34.9
8         12        0.5       36.4
9         12        0.9       38.8

Supplementary Material

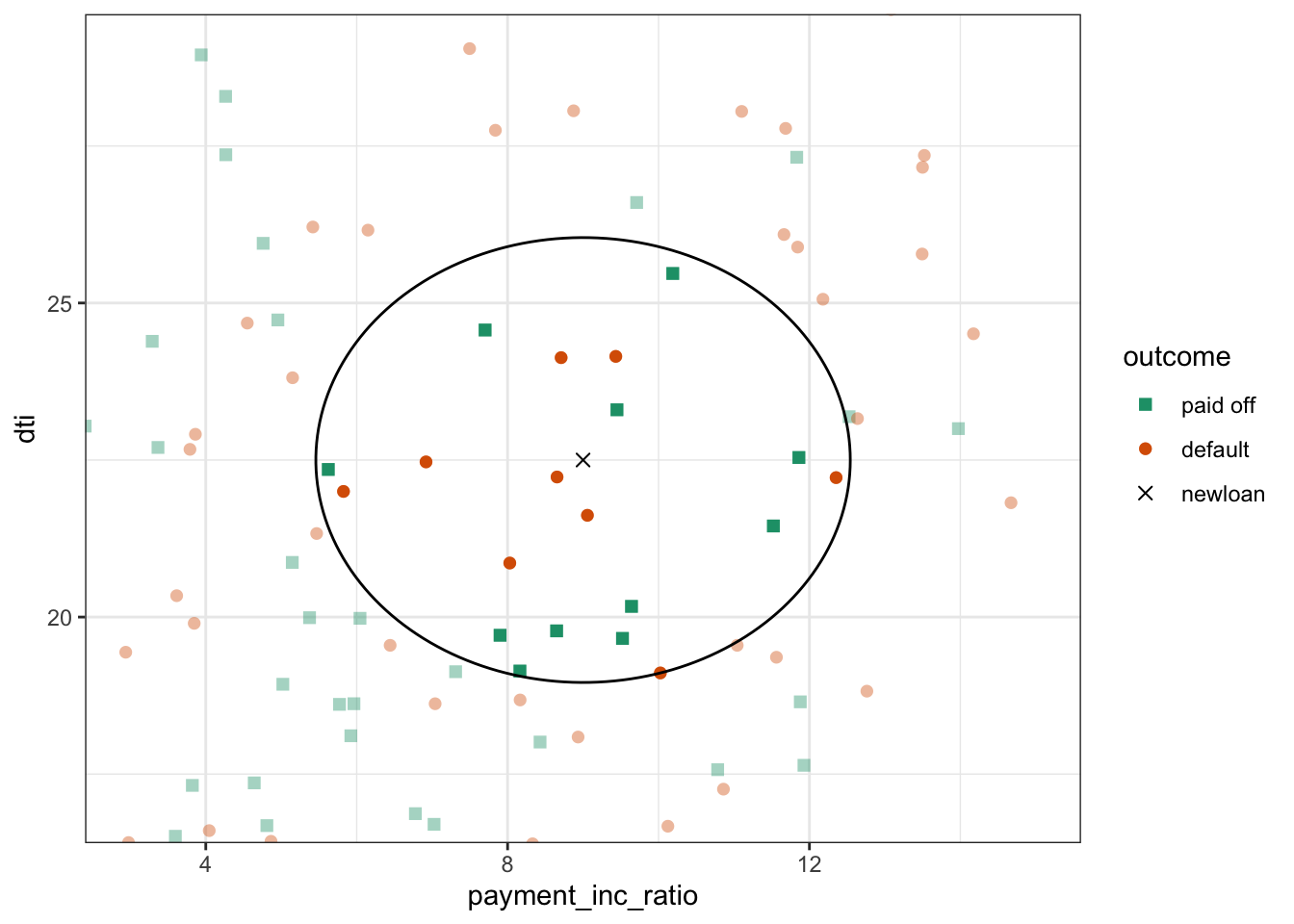

Figure 6-2. KNN prediction of loan default using two variables: debt-to-income ratio and loan-payment-to-income ratio

train_data <- loan200 %>%
  dplyr::slice(-1)
newloan <- loan200 %>%
  dplyr::slice(1) %>%
  select(payment_inc_ratio, dti)

# The knn function from the class package gives us access to a list of the nearest
# neighbors and their distances via attributes "nn.index" and "nn.dist"
knn_pred <- knn(train = train_data[c("payment_inc_ratio", "dti")], test = newloan,
  cl = train_data$outcome, k = 20)

nearest_points <- loan200[c(attr(knn_pred, "nn.index") + 1), ]
nearest_points

# A tibble: 20 × 3
   outcome  payment_inc_ratio   dti
   <fct>                <dbl> <dbl>
 1 default               8.66  22.2
 2 default               9.06  21.6
 3 paid off              9.45  23.3
 4 default               8.71  24.1
 5 default               9.43  24.2
 6 default               8.03  20.9
 7 default               6.92  22.5
 8 paid off              9.64  20.2
 9 paid off              7.70  24.6
10 paid off             11.5   21.4
11 paid off              8.65  19.8
12 paid off             11.9   22.5
13 paid off              9.52  19.7
14 paid off              7.90  19.7
15 paid off             10.2   25.5
16 default               5.82  22
17 default              12.4   22.2
18 paid off              5.62  22.4
19 paid off              8.16  19.1
20 default              10.0   19.1

dist <- attr(knn_pred, "nn.dist")

circle_coordinates <- function(center = c(0, 0), r = 1, npoints = 100) {
  tt <- seq(0, 2 * pi, length.out = npoints - 1)
  xx <- center[1] + r * cos(tt)
  yy <- center[2] + r * sin(tt)
  return(data.frame(x = c(xx, xx[1]), y = c(yy, yy[1])))
}

circle_df <- circle_coordinates(center = unlist(newloan), r = max(dist),
  npoints = 201)

# set first entry as target - requires adding additional level to factor
levels(loan200$outcome) <- c(levels(loan200$outcome), "newloan")
loan200[1, "outcome"] <- "newloan"
head(loan200)

# A tibble: 6 × 3
  outcome  payment_inc_ratio   dti
  <fct>                <dbl> <dbl>
1 newloan               9    22.5
2 default               5.47 21.3
3 paid off              6.90  8.97
4 paid off             11.1   1.83
5 default               3.72 10.8
6 paid off              1.90 11.3

levels(nearest_points$outcome)

[1] "paid off" "default"

graph <- ggplot(data = loan200, aes(x = payment_inc_ratio, y = dti, color = outcome)) +
  geom_point(aes(shape = outcome), size = 2, alpha = 0.4) +
  geom_point(data = nearest_points, aes(shape = outcome), size = 2) +
  geom_point(data = loan200[1, ], aes(shape = outcome), size = 2) +
  scale_shape_manual(values = c(15, 16, 4)) +
  scale_color_manual(values = c("paid off" = "#1b9e77", "default" = "#d95f02", "newloan" = "black")) +
  geom_path(data = circle_df, aes(x = x, y = y), color = "black") +
  coord_cartesian(xlim = c(3, 15), ylim = c(17, 29)) +
  theme_bw()
graph

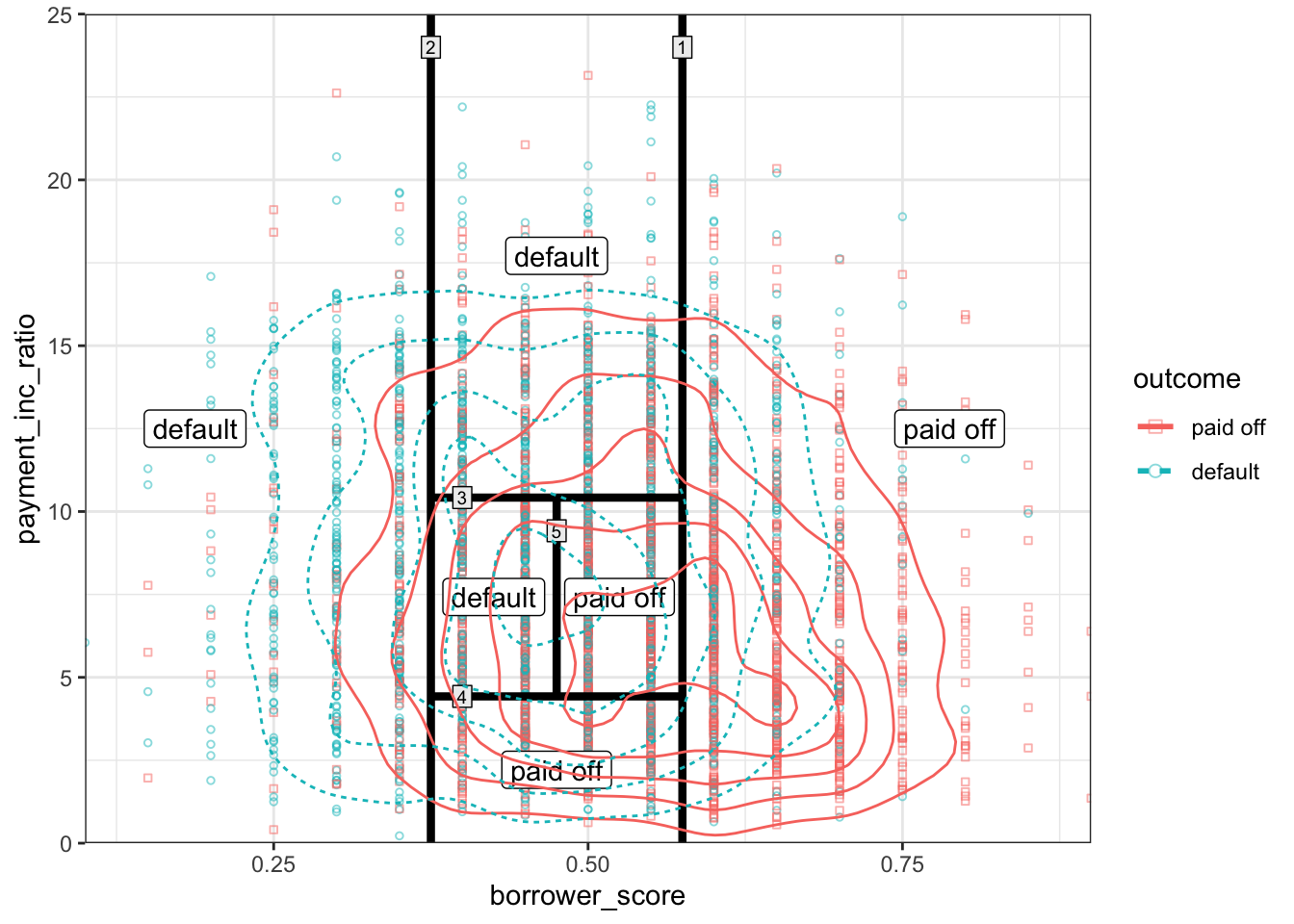

Figure 6-4. The first five rules for a simple tree model fit to the loan data

## Figure 6-4: View of partition rules
r_tree <- tibble(
  x1 = c(0.575, 0.375, 0.375, 0.375, 0.475),
  x2 = c(0.575, 0.375, 0.575, 0.575, 0.475),
  y1 = c(0, 0, 10.42, 4.426, 4.426),
  y2 = c(25, 25, 10.42, 4.426, 10.42),
  rule_number = factor(c(1, 2, 3, 4, 5)))
r_tree <- as.data.frame(r_tree)

rules <- tibble(
  x = c(0.575, 0.375, 0.4, 0.4, 0.475),
  y = c(24, 24, 10.42, 4.426, 9.42),
  rule_number = factor(c(1, 2, 3, 4, 5))
)

labs <- tibble(
  x = c(
    0.575 + (1 - 0.575) / 2,
    0.375 / 2,
    (0.375 + 0.575) / 2,
    (0.375 + 0.575) / 2,
    (0.475 + 0.575) / 2,
    (0.375 + 0.475) / 2
  ),
  y = c(
    12.5,
    12.5,
    10.42 + (25 - 10.42) / 2,
    4.426 / 2,
    4.426 + (10.42 - 4.426) / 2,
    4.426 + (10.42 - 4.426) / 2
  ),
  decision = factor(c(
    "paid off",
    "default",
    "default",
    "paid off",
    "paid off",
    "default"
  ))
)

shift <- 0.004
shift <- 0
graph <- loan3000 %>%
  #  mutate(borrower_score = ifelse(outcome == "paid off", borrower_score + shift, borrower_score - shift)) %>%
  mutate(
    borrower_score = borrower_score + rnorm(dim(loan3000)[1], sd = 2 * shift)
  ) %>%
  ggplot(aes(x = borrower_score, y = payment_inc_ratio)) +
    geom_point(aes(color = outcome, size = outcome, shape = outcome), alpha = 0.5) +
    # scale_color_manual(values = c("paid off" = "#7fbc41", "default" = "#d95f02")) +
    scale_shape_manual(values = c("paid off" = 0, "default" = 1)) +
    scale_size_manual(values = c("paid off" = 1, "default" = 1)) +
    geom_segment(data = r_tree, aes(x = x1, y = y1, xend = x2, yend = y2), linewidth = 1.5) +
    guides(color = guide_legend(override.aes = list(linewidth = 1.5)),
      linetype = guide_legend(keywidth = 3, override.aes = list(linewidth = 1))) +
    scale_x_continuous(expand = c(0, 0)) +
    scale_y_continuous(expand = c(0, 0)) +
    coord_cartesian(ylim = c(0, 25)) +
    geom_label(data = labs, aes(x = x, y = y, label = decision)) +
    geom_label(data = rules, aes(x = x, y = y, label = rule_number),
      size = 2.5, fill = "#eeeeee",
      label.r = unit(0, "lines"), label.padding = unit(0.2, "lines")) +
    guides(color = guide_legend(override.aes = list(size = 2))) +
    stat_density_2d(aes(linetype = outcome, color = outcome),
    # variation geom = "polygon",
    # variation aes(alpha = 0.1 * ..level.., fill = outcome),
                    bins = 6)  +
    theme_bw()
graph

graph <- ggplot(data = loan3000, aes(x = borrower_score, y = payment_inc_ratio)) +
  geom_point(aes(color = outcome, shape = outcome, size = outcome), alpha = 0.8) +
  scale_color_manual(values = c("paid off" = "#7fbc41", "default" = "#d95f02")) +
  scale_shape_manual(values = c("paid off" = 0, "default" = 1)) +
  scale_size_manual(values = c("paid off" = 0.5, "default" = 2)) +
  geom_segment(data = r_tree, aes(x = x1, y = y1, xend = x2, yend = y2), size = 1.5) +
  guides(color = guide_legend(override.aes = list(size = 1.5)),
    linetype = guide_legend(keywidth = 3, override.aes = list(size = 1))) +
  scale_x_continuous(expand = c(0, 0)) +
  scale_y_continuous(expand = c(0, 0)) +
  coord_cartesian(ylim = c(0, 25)) +
  geom_label(data = labs, aes(x = x, y = y, label = decision)) +
  geom_label(data = rules, aes(x = x, y = y, label = rule_number),
    size = 2.5, fill = "#eeeeee",
    label.r = unit(0, "lines"), label.padding = unit(0.2, "lines")) +
  guides(color = guide_legend(override.aes = list(size = 2))) +
  theme_bw()

Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
ℹ Please use `linewidth` instead.

graph

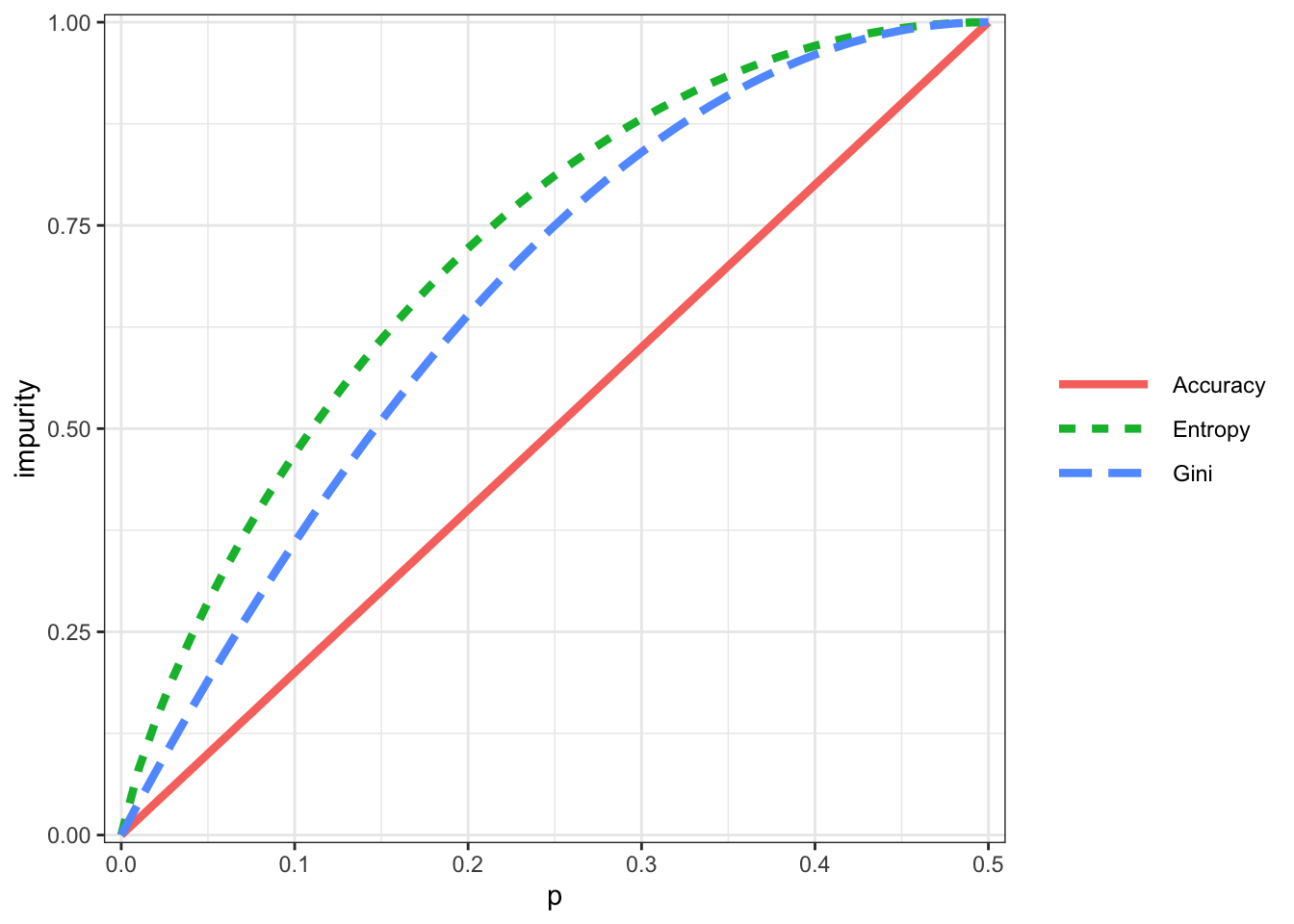

Figure 6-5. Gini impurity and entropy measures

info <- function(x) {
  info <- ifelse(x == 0, 0, -x * log2(x) - (1 - x) * log2(1 - x))
  return(info)
}

gini <- function(x) {
  return(x * (1 - x))
}

x <- 0:50 / 100
impure <- bind_rows(
  tibble(p = x, impurity = 2 * x, type = "Accuracy"),
  tibble(p = x, impurity = gini(x) / gini(0.5) * info(0.5), type = "Gini"),
  tibble(p = x, impurity = info(x), type = "Entropy")
)

graph <- ggplot(data = impure, aes(x = p, y = impurity, linetype = type, color = type)) +
  geom_line(size = 1.5) +
  guides(linetype = guide_legend(keywidth = 3, override.aes = list(size = 1))) +
  scale_x_continuous(expand = c(0, 0.01)) +
  scale_y_continuous(expand = c(0, 0.01)) +
  theme_bw() +
  theme(legend.title = element_blank())
graph
